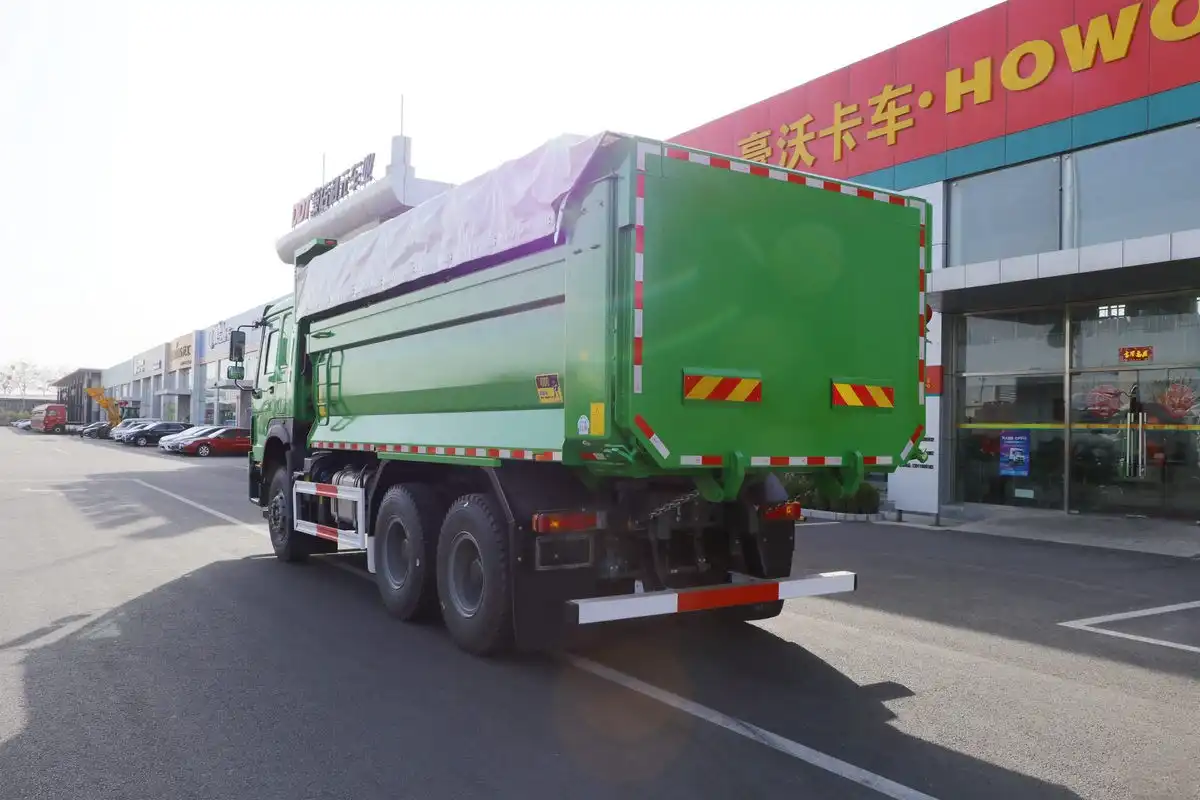

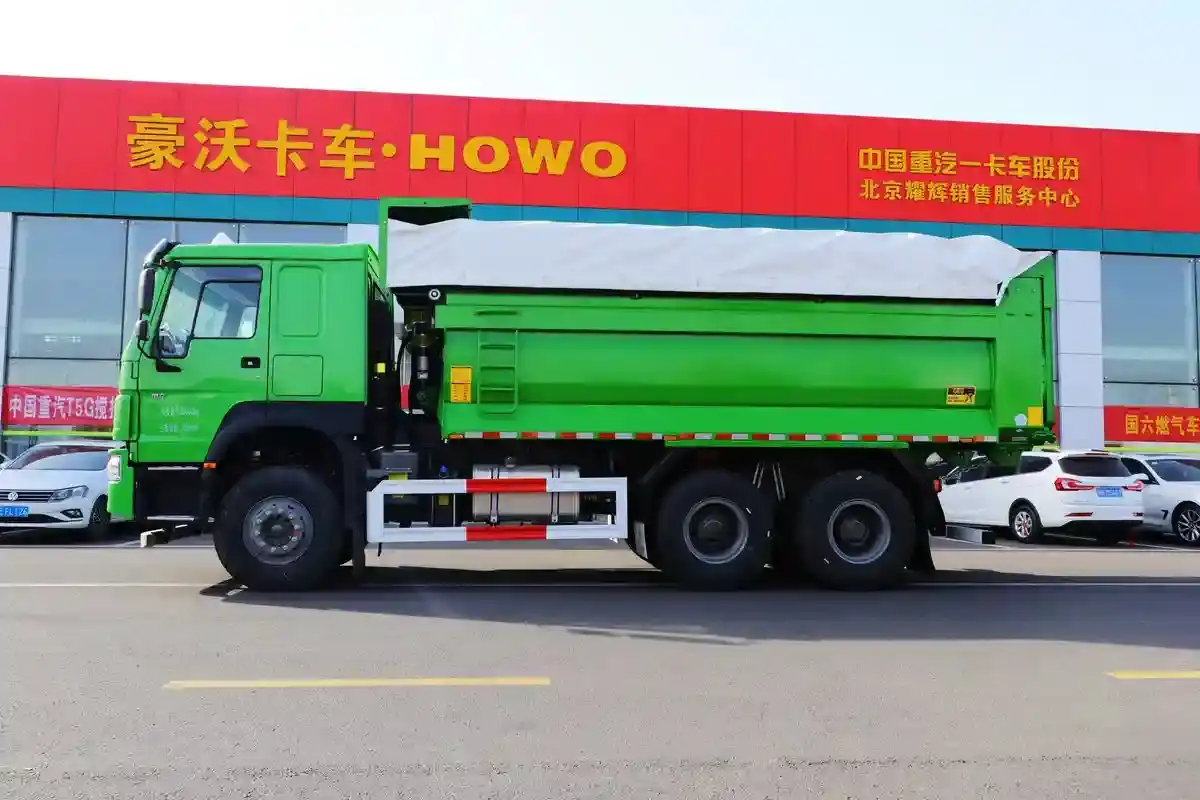

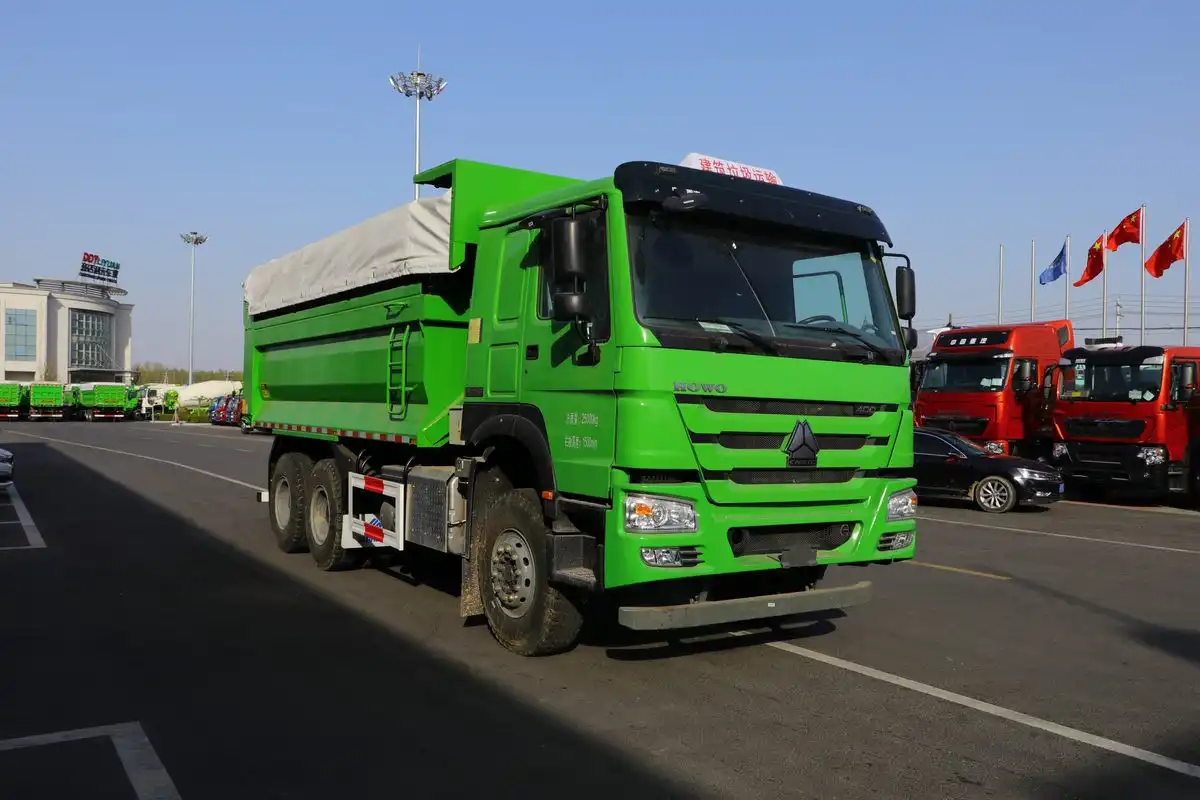

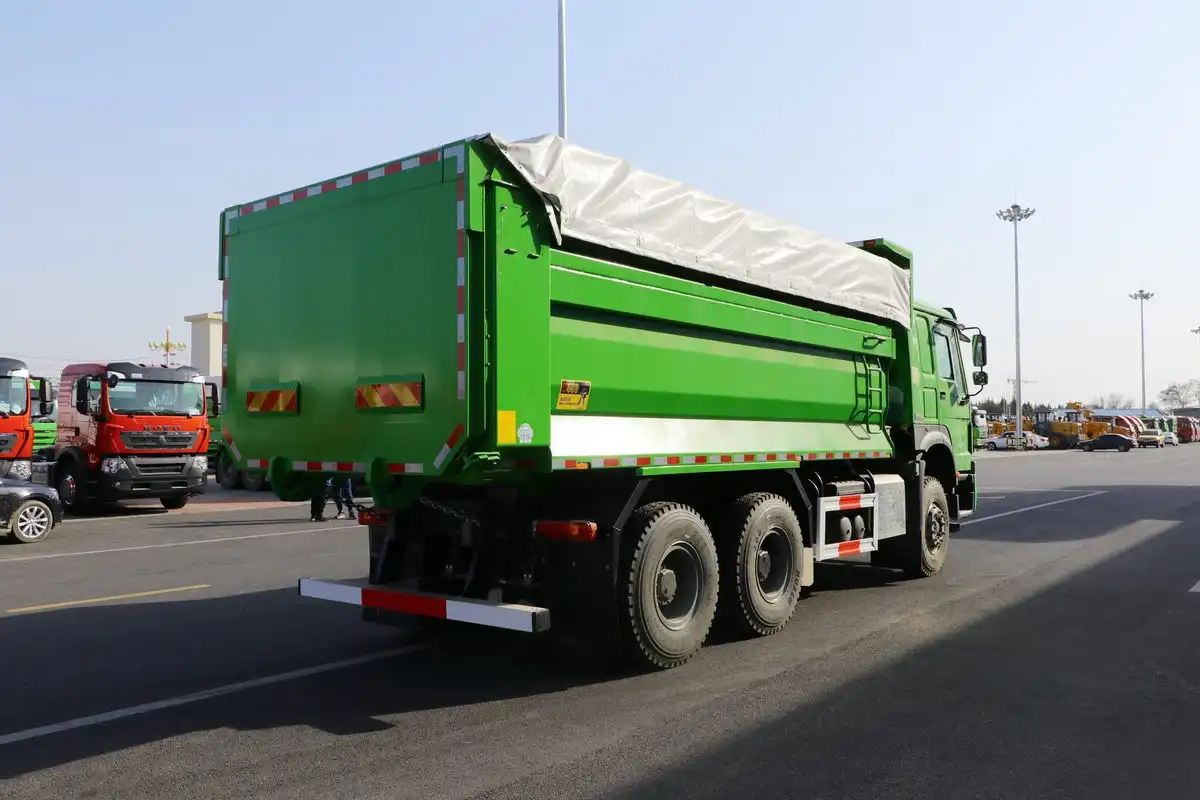

HOWO 400HP 6×4 Dump Truck
Product Description
The HOWO 400HP 6×4 Dump Truck is a heavy-duty tipper designed for construction, earthmoving and bulk material transportation. Its 6×4 drivetrain, high-torque diesel engine and reinforced chassis provide dependable performance when operating with heavy loads and on demanding roads.
The truck is powered by a Weichai WP10H400E62 9.5L six-cylinder diesel engine rated at 400 HP and 1900 Nm of maximum torque. Combined with the Sinotruk HW19712 12-speed manual transmission, the powertrain provides strong pulling performance and practical gear selection for different working conditions.
The 5.6m rear-tipping body provides a practical balance between carrying capability and maneuverability. Heavy-duty leaf-spring suspension and 12.00R20 16PR tires further support stable operation on construction sites, unpaved roads and other demanding working environments.
Main Features & Advantages
400HP High-Torque Power
The Weichai 9.5L engine delivers 400 HP and 1900 Nm of torque, providing strong pulling and climbing capability for heavy-duty transportation.
6×4 Heavy-Duty Drivetrain
The 6×4 configuration provides strong traction and stability, especially when carrying heavy materials over uneven or challenging roads.
5.6m Rear-Tipping Body
The 5.6m dump body is designed for efficient loading and rear unloading of aggregates, earth, construction materials and similar bulk cargo.
Durable Chassis and Suspension
The heavy-duty chassis and multi-leaf spring suspension are designed for continuous operation and demanding working conditions.
Practical Maintenance
The mature HOWO platform uses widely recognized heavy-truck components, helping simplify routine maintenance and parts replacement.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | ZZ3257V3847F1 |
| Drive Configuration | 6×4 |
| Maximum Horsepower | 400 HP (294 kW) |
| Rated Load | 12.37 tons |
| Engine Model | Weichai WP10H400E62 |
| Engine Displacement | 9.5L |
| Maximum Torque | 1900 Nm |
| Transmission | Sinotruk HW19712, 12-Speed Manual |
| Overall Dimensions | 8.545 x 2.52 x 3.45 m |
| Wheelbase | 3625 + 1350 mm |
| Dump Body | Rear Tipping |
| Cargo Body Size | 5.6 x 2.35 x 1.5 m |
| Front Axle Capacity | 7,000 kg |
| Rear Axle Capacity | 18,000 kg (Tandem Axle Group) |
| Suspension | Heavy-Duty Multi-Leaf Spring |
| Tire Specification | 12.00R20 16PR |
| Tire Quantity | 10 |
| Gross Vehicle Weight | 25,000 kg |
| Emission Standard | China VI |
| Fuel Type | Diesel |
| Origin | Jinan, Shandong, China |
Applications
The HOWO 400HP 6×4 Dump Truck is suitable for a wide range of heavy-duty transportation applications, including:
- Construction material transportation
- Earth and soil hauling
- Sand and aggregate transportation
- Quarry and mining support
- Road and infrastructure projects
- Urban construction and earthmoving
Why Choose HOWO 400HP 6×4 Dump Truck?
The HOWO 400HP 6×4 Dump Truck provides a practical combination of power, durability and operating efficiency. Its 400HP Weichai engine offers strong torque, while the 6×4 drivetrain and heavy-duty suspension provide dependable traction when working with heavy loads.
For operators working in demanding environments, the truck’s straightforward mechanical configuration and mature HOWO platform make daily servicing and component replacement relatively practical. This helps fleets maintain productivity and control long-term operating costs.
Frequently Asked Questions
1. What engine does the HOWO 400HP Dump Truck use?
It uses the Weichai WP10H400E62 9.5L six-cylinder diesel engine, rated at 400 HP with a maximum torque of 1900 Nm.
2. What is the drive configuration?
The truck uses a 6×4 drive configuration with two driven rear axles, providing strong traction for heavy-duty applications.
3. What is the dump body size?
The standard rear-tipping body measures approximately 5.6m long, 2.35m wide and 1.5m high.
4. What type of tires are fitted?
The listed configuration uses 12.00R20 16PR tires with 10 tires in total.
5. What applications is this truck suitable for?
It is suitable for earthmoving, construction materials, aggregates, quarry operations, infrastructure projects and other heavy-duty material transportation tasks.
