Product Description

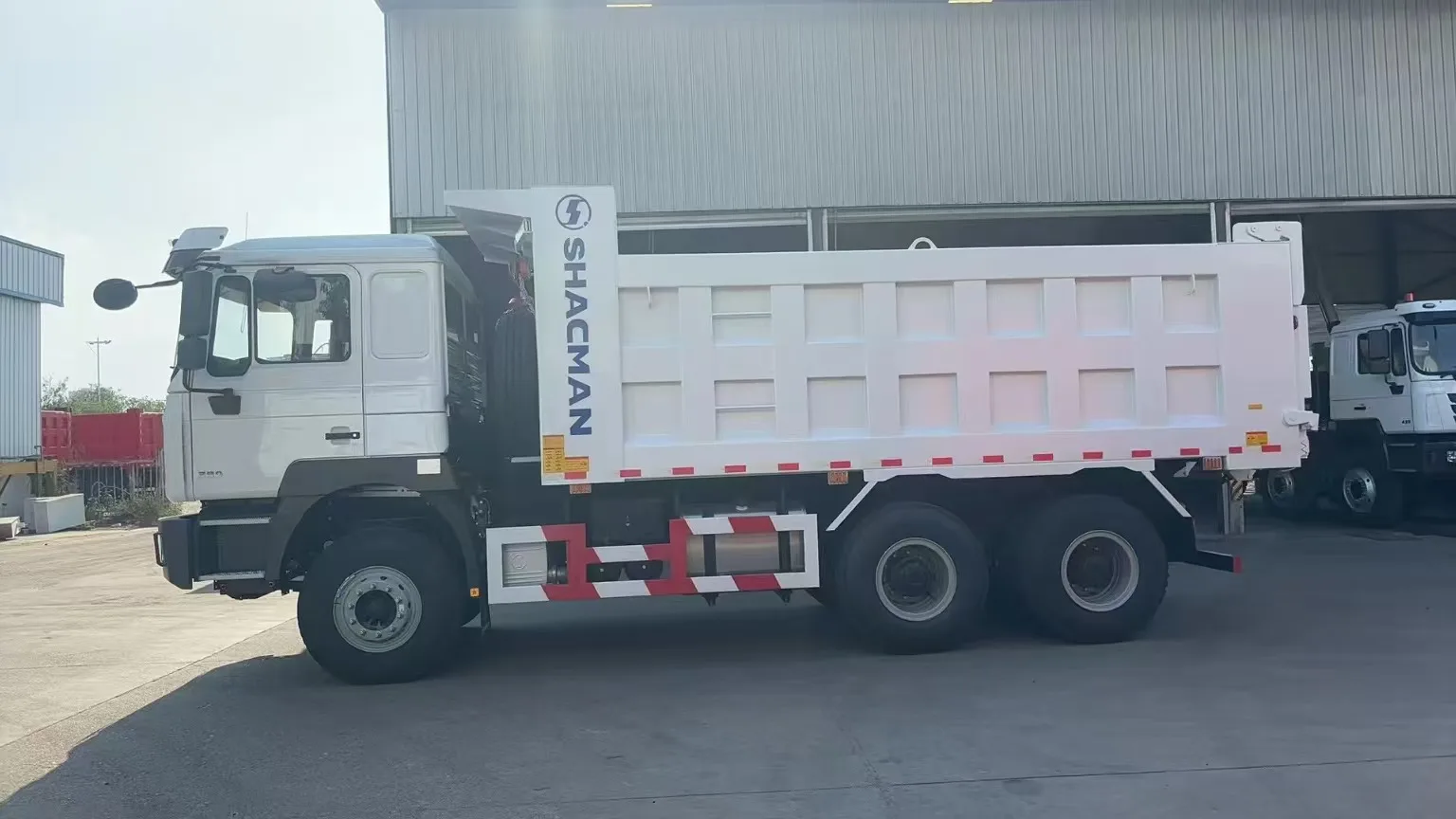

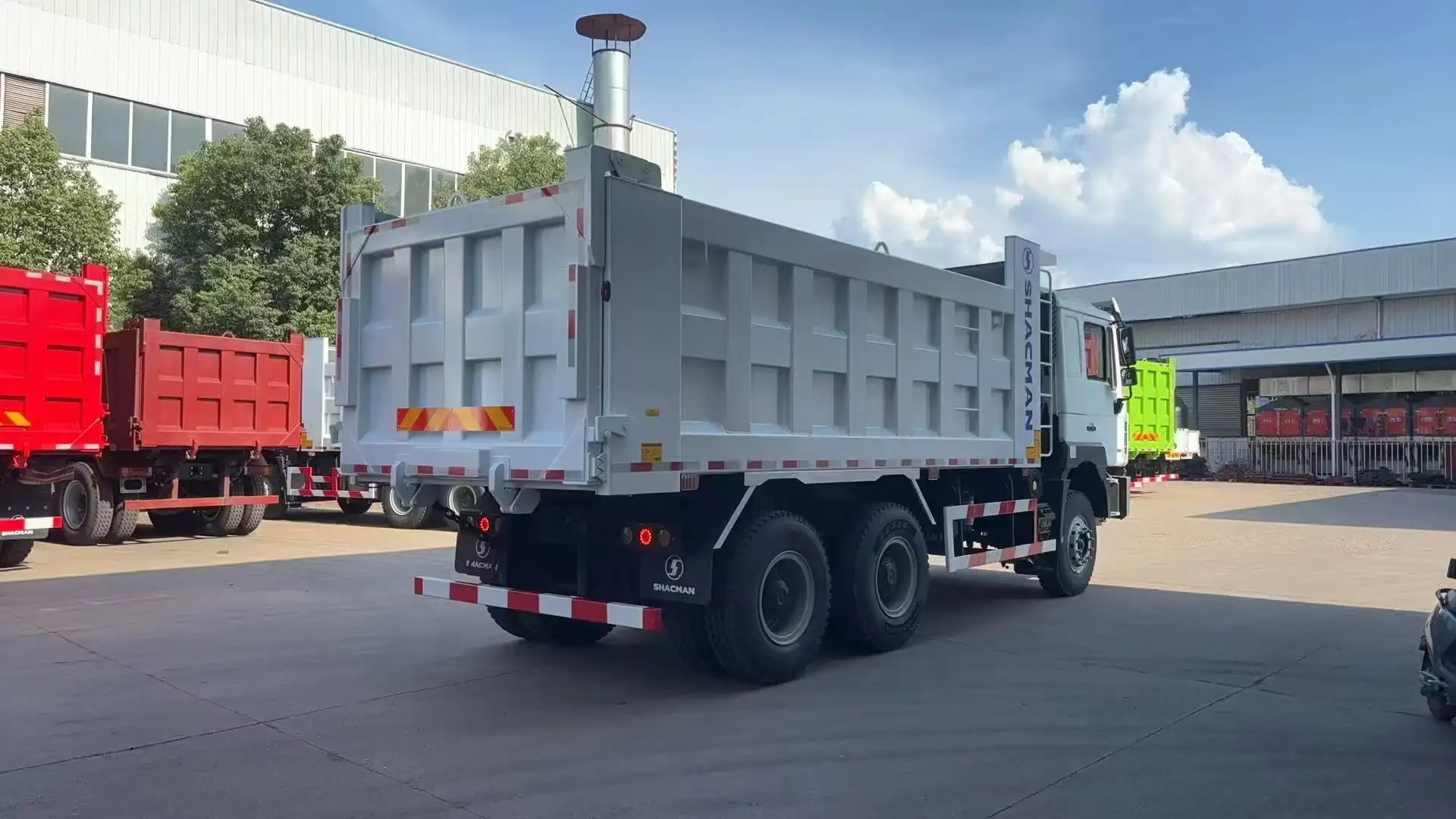

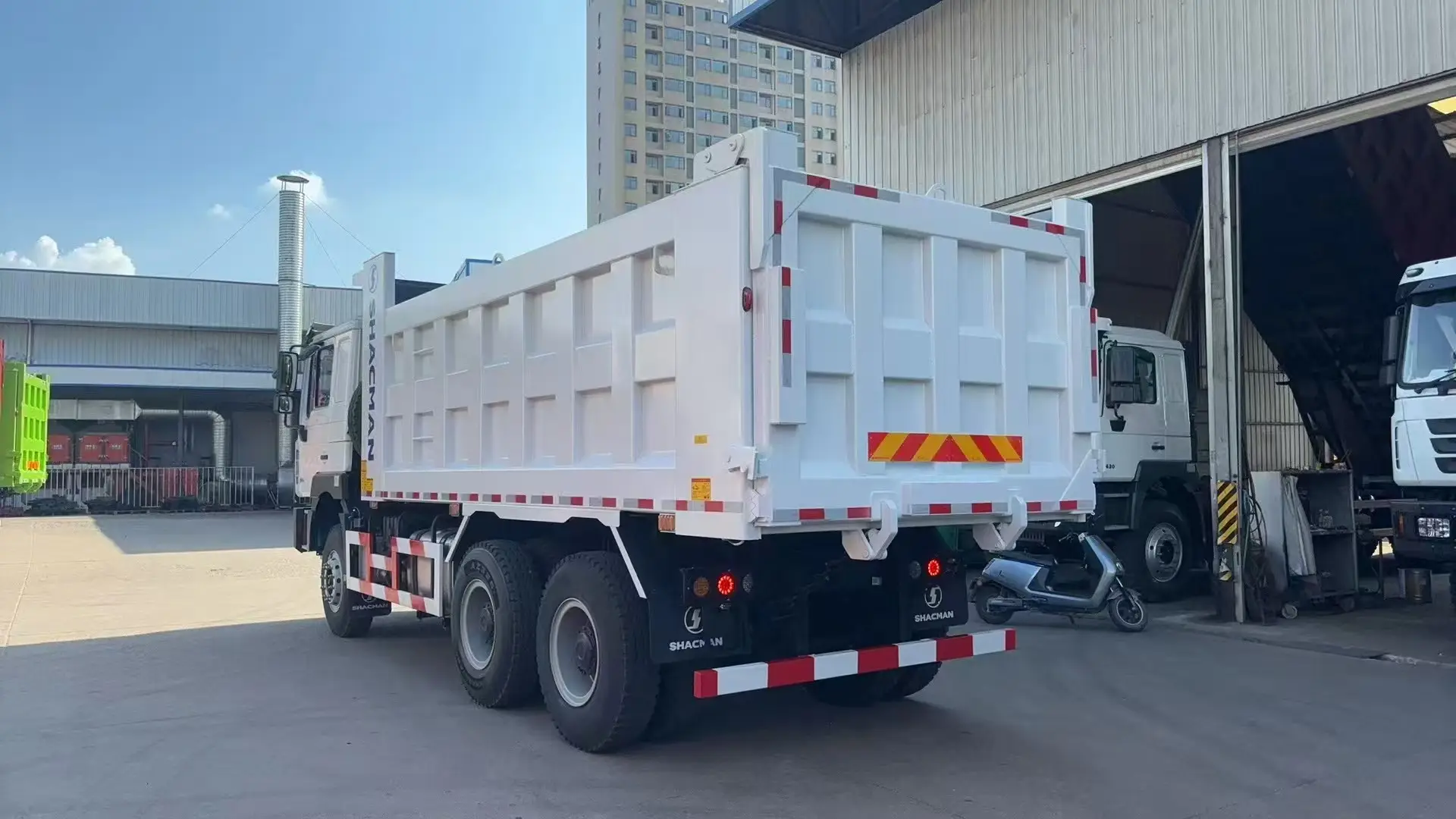

This configuration features a practical F3000 medium-length flat-roof cab, heavy-duty 6×4 drivetrain, 12.00R20 tires and a reinforced 5600 × 2300 × 1500 mm dump body. The Q355 manganese steel body uses an 8 mm bottom and 6 mm side panels, making it suitable for repeated heavy-load operations in construction and mining projects.

Technical Specifications

Key Features

• 380HP Weichai Engine: WP10.380E22 engine provides dependable power for heavy-duty transportation.
• 6×4 Heavy-Duty Drivetrain: Suitable for construction sites, mining operations and demanding road conditions.
• Reinforced Dump Body: Q355 manganese steel construction with an 8 mm bottom and 6 mm side panels.
• Heavy-Duty Axles: 9.5-ton front axle and 16-ton MAN rear axles for demanding load applications.
• Practical F3000 Cab: Medium-length flat-roof configuration without a roof air deflector.
• 360L Fuel Tank: Aluminum alloy fuel tank designed for extended operating range.

Reinforced Dump Body

The dump body measures 5600 × 2300 × 1500 mm and is manufactured from Q355 manganese steel. The bottom uses an 8 mm steel plate, while the side panels use 6 mm steel plates.

The body is fully welded and reinforced with four longitudinal beams and additional bottom reinforcement. A front-mounted 180 hydraulic cylinder provides the lifting function, while the reinforced rear door structure is designed for repeated loading and unloading operations.

Applications

The SHACMAN F3000 6×4 380HP Dump Truck is suitable for:

• Mining and quarrying
• Construction projects
• Infrastructure development
• Sand and gravel transportation
• Aggregate and bulk material hauling
• Earthmoving operations

Why Choose SHACMAN F3000?

The F3000 is a proven heavy-duty truck platform widely used for demanding transportation applications. Its 6×4 configuration, 380HP engine, heavy-duty axles and reinforced dump body provide a practical combination for construction and mining operations.

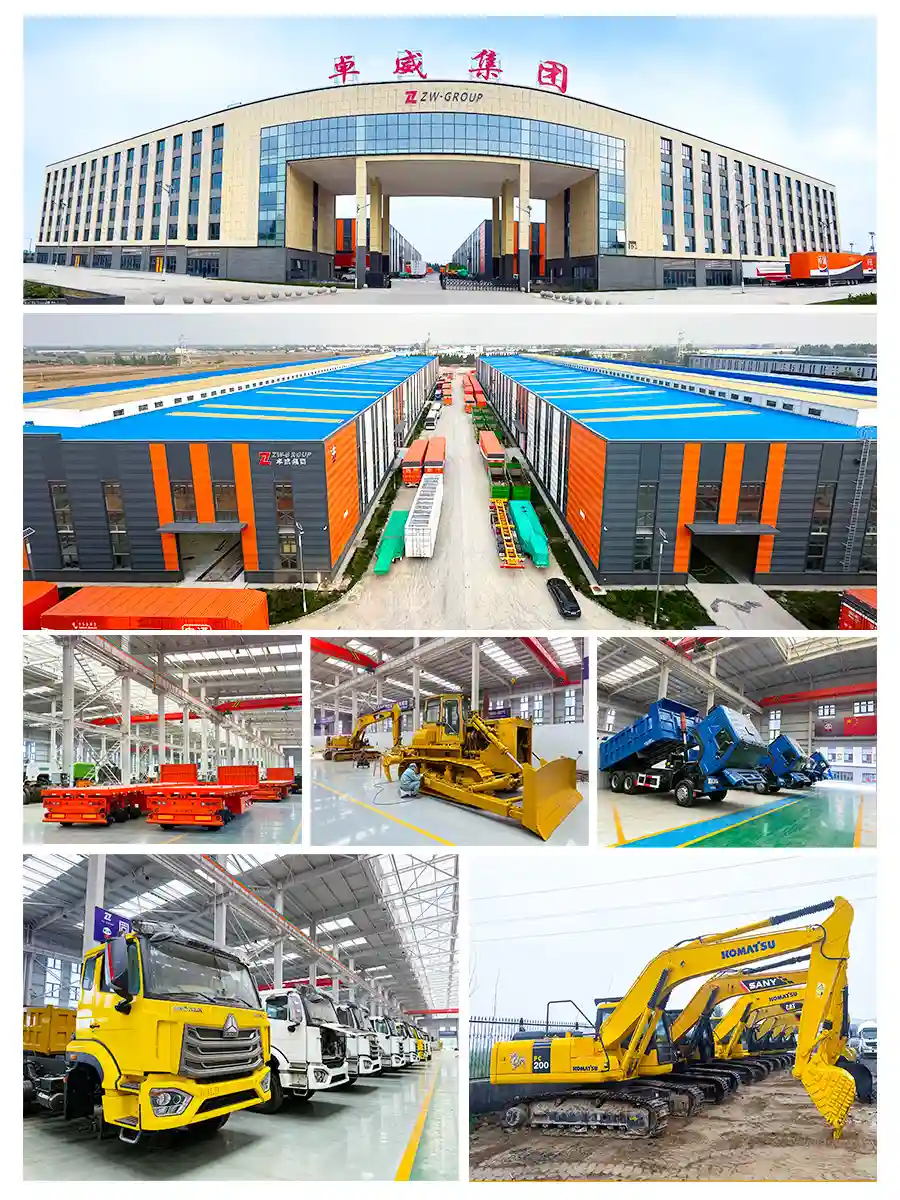

ZW Group supplies SHACMAN trucks and heavy truck parts for customers in Africa and emerging markets. We can also support customers with vehicle configuration, spare parts matching and long-term parts supply according to their operating requirements.

Frequently Asked Questions

1. What engine and transmission does the SHACMAN F3000 6×4 380HP Dump Truck use?

This SHACMAN F3000 dump truck is equipped with a Weichai WP10.380E22 380HP diesel engine and a 10JSD180-QH50 manual transmission. The 6×4 drivetrain is suitable for heavy-duty transportation, construction and mining applications.

2. What is the dump body size and material?

The dump body measures 5600 × 2300 × 1500 mm and is manufactured from Q355 manganese steel. It features an 8 mm bottom plate and 6 mm side panels, with reinforced longitudinal beams and a front-mounted hydraulic lifting system for demanding working conditions.

3. Can you supply SHACMAN F3000 dump trucks for projects in Africa?

Yes. ZW Group supplies SHACMAN heavy-duty dump trucks for customers in Africa and emerging markets. We can support distributors, fleet operators, mining companies and construction contractors with vehicle configuration, bulk orders, spare parts and export coordination. Contact us with your required quantity, destination and configuration for a quotation.
