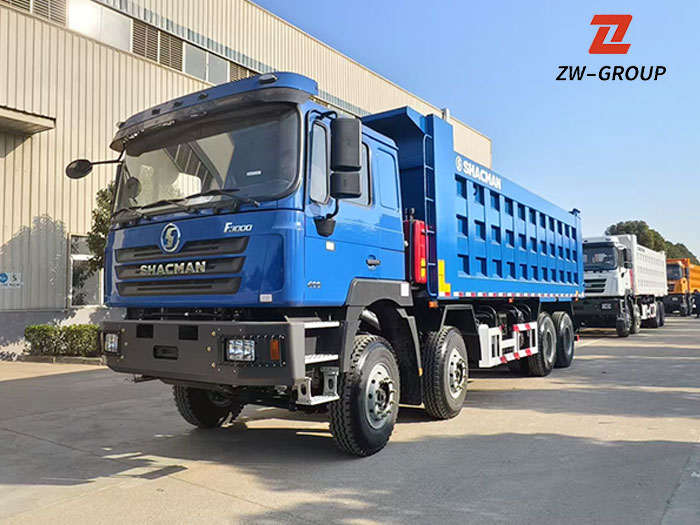

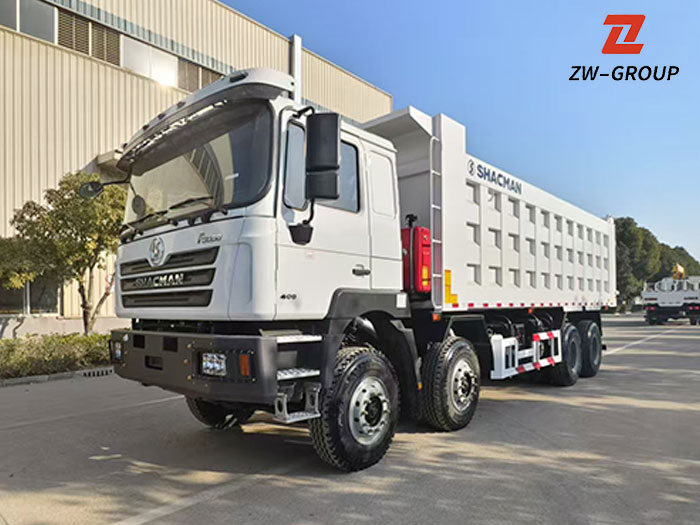

SHACMAN F3000 8×4 Dump Truck

The SHACMAN F3000 8×4 Dump Truck is a heavy-duty tipper designed for large-scale construction, mining, quarrying, earthmoving and bulk material transportation. With four axles, a reinforced chassis and heavy-duty drive axles, it provides strong traction, stability and load-carrying capability for demanding working conditions.

The F3000 8×4 platform supports multiple Cummins and Weichai engine configurations. Common power options include approximately 380 HP, 400 HP and 430 HP, while higher-output configurations are also available for demanding applications.

Key Features

8×4 Heavy-Duty Drivetrain

The 8×4 configuration uses four axles with two driven rear axles, providing better load distribution and strong traction compared with lighter configurations. It is suitable for heavy construction materials, quarry products and long working cycles on rough roads.

Strong Engine and Pulling Power

The F3000 can be configured with different engine outputs to match the application. Around 380–400 HP is suitable for general heavy-duty construction and aggregate transportation, while 430 HP or higher provides additional torque reserve for heavier loads, steep grades and demanding quarry or mining operations.

Heavy-Duty Axles

A typical configuration uses a 9.5-ton front axle and 16-ton heavy-duty rear drive axles. Double-reduction rear axles and different final-drive ratios can be selected according to payload and road conditions.

Reinforced Chassis

The F3000 features a reinforced heavy-duty frame with multi-leaf spring suspension. The chassis is designed for repeated loading and unloading, rough roads and construction-site operation.

Large Dump Body

The 8×4 platform supports large dump bodies, commonly around 7400–7600 mm long, 2300 mm wide and 1500 mm high. The body can be configured for sand, gravel, stone, soil and other bulk materials.

Technical Specifications

Horsepower and Pulling Performance

For most construction and aggregate applications, a 380–400 HP configuration provides a practical balance between pulling power, payload and operating cost. A 430 HP configuration is better suited to heavier loads, steep terrain, quarry operations and demanding mining applications.

Actual pulling performance depends on engine torque, transmission ratios, axle ratio, vehicle weight, payload, tire size and road conditions. The final powertrain should therefore be selected according to the customer’s working environment.

Applications

• Large-scale construction projects
• Mining and quarry operations
• Sand and gravel transportation
• Earthmoving and excavation
• Road and infrastructure projects
• Stone and aggregate transportation
• Heavy-duty bulk material hauling

Why Choose the F3000 8×4?

The SHACMAN F3000 8×4 combines a proven heavy-duty chassis, strong drivetrain and large dump body into a practical solution for demanding transport operations. Its four-axle layout provides better load distribution, while the reinforced frame and heavy-duty suspension are suitable for rough roads and frequent loading cycles.

For African markets, the truck can be configured according to local road conditions, payload requirements, fuel availability and emission regulations. Options include engine power, axle ratio, transmission, tires, suspension, fuel tank and dump body dimensions.

Frequently Asked Questions

What horsepower is available for the SHACMAN F3000 8×4?

The F3000 8×4 platform supports approximately 340–460 HP depending on the engine and market configuration. Common heavy-duty choices include 380 HP, 400 HP and 430 HP.

Is the F3000 8×4 suitable for mining?

Yes. Its 8×4 drivetrain, reinforced chassis, heavy-duty axles and large dump body make it suitable for quarrying, mining, earthmoving and other demanding applications.

What transmission is used?

FAST manual transmissions are commonly used, with 10- and 12-speed configurations available depending on the vehicle specification.

Can the dump body be customized?

Yes. Dump body length, width, height, steel thickness and hydraulic lifting configuration can be adjusted according to the intended application.

Request a Suitable SHACMAN F3000 8×4 Configuration

Tell us your required payload, working conditions, road type and preferred horsepower, and we can recommend a suitable SHACMAN F3000 8×4 Dump Truck configuration for your market.
